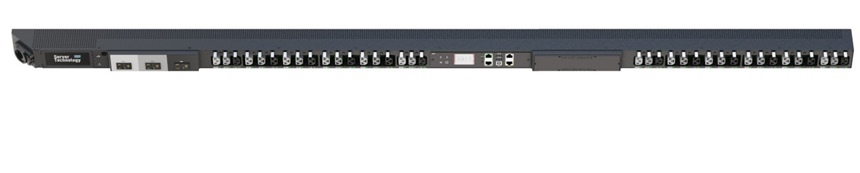

C4S36RA-ENBE2FE2 ServerTech Smart PRO4X iX PDU, 36 RamLock HDOT Outlets (12 C13 + 24 Cx), 230V 1PH 16A IEC 60309 1P+N+G 6Hr Blue Plug with 3 m (9.84 ft) Input Cord
Description:
C4S36RA-ENBE2FE2
Server Technology Smart PRO4X iX PDU, 48 RamLock HDOT Outlets (24 C13 + 24
Cx), 230V 1PH 16A IEC 60309 1P+N+G 6Hr Blue Plug with 3 m
(9.84 ft) Input Cord,
Description
Server Technology's PRO4X Smart PDUs run on our state-of-the-art Xerus network interface platform and provide remote access to power, PDU status, input and branch current monitoring. The PDU features RamLock, a self-locking mechanism to prevent accidental cord disconnects, and our award-winning HDOT Cx outlets that can be deployed as either a C13 or C19. Smart PDUs are secured with strong configurable password, active directory, 256-bit AES encryption, SSH, SSL and HTTPS support. SNMP traps provide automated alerts on power and environmental conditions from Legrand's plug-and-play environmental monitoring sensors like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
Features:
Key Features
Hdot cx outlets r4
HDOT Cx Outlets
Cx is the future-ready UL tested hybrid of a C13 and C19 outlet accommodating both C14 and C20 plugs.
45 degree angled infeed r4
45 Degree Angled Infeed
The angled infeed improves accessibility, provides infeed strain relief, and its bend radius is suitable with 60A rated cords.
Network monitoring r4
Network Monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Multi primary linking r4
Multi-Unit Linking & Cascading
Daisy chain up to 16 PDUs from a primary PDU using a USB or Ethernet connection through a single IP address.
Multi color lcd r4
Multi-Color LCD
An easy-to-read LCD provides a local indication of power usage, alerts, and alarms.
Hot swappable controller r4
Hot Swappable Controller
The Controller is the PDU's center of intelligence and houses computing, display, and connectivity ports.
Power quality measurements r4
Power Quality Measurements
Monitor and alert on the power being fed to the PDU for harmonics, voltage dips and swells, crest factor, and more at the outlet or load.
Rgb led outlet indicators r4
RGB LED Outlet Indicators
RGB LEDs identify an outlet's on/off state, if it's above/below a certain power threshold, or if it's in suspect of a power measurement irregularity.
Waveform capture r4
Waveform Capture
Capture voltage and current waveforms automatically or upon demand.
Environmental monitoring r4
Environmental Monitoring
Support up to 12 daisy chained DX2-series SmartSensors, each with the ability to send SNMP-based alerts and email notifications.
Pips per inlet power sensing sti r4
Per-Inlet Power Sensing
PIPS® (Per Inlet Power Sensing) Monitors Current Load (A), Voltage (V), Power (W), Apparent Power (VA), Crest Factor, Power Factor, & Energy per inlet.
Branch circuit protection r4
Branch Circuit Protection
This PDU meets the UL and IEC 62368-1 requirement for branch circuit protection through UL 489 rated magnetic-hydraulic circuit breakers or UL 248 fuses.
Alternating phase outlets r4
Alternating-Phase Outlets
Evenly distributes multiple phases of power to each outlet for simplified load balancing, reduced cord lengths, and better airflow.
High temperature rating r4
High Temperature Rating
This product has been tested and approved for safe and reliable operation in 60 °C data center environments.
Specification:

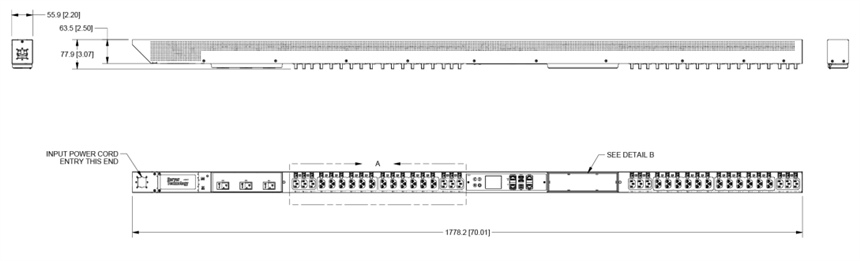

C4S36RA-ENBE2FE2 LINE PIC
Smart PRO4X iX PDU, 48 RamLock HDOT Outlets (24 C13 + 24
Cx), 230V 1PH 16A IEC 60309 1P+N+G 6Hr Blue Plug with 3 m
(9.84 ft) Input Cord, Bottom/Angled Cord Entry, Outlet #1 Opposite
The Power Input, Auto-orient Middle LCD, Dual 10/100/1000 Mbps
Inputs
Input Voltage (V): 230
Input Plug: IEC 230V/16A 2P+PE 6Hr
Input Current (A): 16
Input Current Rated (A): 16
Input Power Capacity (kW): 3.6
Outputs
Connector Rating
(12) x IEC 60320/C13 Global Rating: ≤ 10A @230V L-N
(24) x Cx Global Rating: ≤ 16A @230V L-N
Examples:
C4W36RA-0ABE2FE2/00 00 - PDU with C20 inlet, black paint, and overlays
C4W36RA-YCBE2EE3/30 B1 - PDU with standard 3 m input cord, black paint, blue markings
PDU Paint Color / Overlay Colors
Black Paint, Black Labels 00
Black Paint, Red Labels R1
Black Paint, Blue Labels B1
Black Paint, Green Labels G1
Black Paint, Orange Labels ON
Black Paint, Yellow Labels Y1
Black Paint, White Labels W1
Branch Circuit Protection
UL489 Compliant 2-pole, 20A trip circuit breakers, three (3) branch, rating: ≤ 16A, 10 kAIC Interrupt Rating
Physical
Dimensions: 70.0in tall x 2.2in wide x 2.5in deep [1778mm x 56mm x 64mm]
Environmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 5% RH to 90% RH non-condensing | < 3000M / 10,000 ft. elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 20% RH to 90% RH non-condensing | < 15,000M / 50,000 ft. elevation
Quiescent / Unloaded Power Draw: < 7W for all configurations
Communications & Security
Dual Ethernet, Two (2) 10/100/1000 Mbps (Cat5e/6 connector), Optional Wi-Fi (802.11 a/b/g/n) One (1) Sensor port (RJ45), One (1) PDU Link (RJ45), Two (2) USB-A (5 V / 500 mA), and One (1) USB-B
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
Certifications
Global:
Safety
EN IEC 62368-1 (TUVR certified, T-mark)
IEC 62368-1 incl. regional, national and harmonized differences (IECEE CB scheme) EMC
EMC
EN 55032 / CISPR 32
EN 55035 / CISPR 35
EN 61000-3-2 / IEC 61000-3-2
EN 61000-3-3 / IEC 61000-3-3
CE Mark
2011/65/EU (RoHS Directive)
2014/35/EU (Low Voltage Directive)
2014/30/EU (EMC Directive)
UKCA Mark
RoHS
Electrical Equipment (Safety)
Electromagnetic Compatibility
Ethernet Ports, Environmental Sensor Support, Dual USB-A Ports
for Linking and Accessories, Height 2.03m (80 in.)
Features: 60C, Alt-Phase, Branch Current Monitoring, HDOT,
PRO4X, RamLock
Shipping Weight: 29 lbs. (13.15 kg)
Shipping Dims: 87 x 12 x 7 in.
