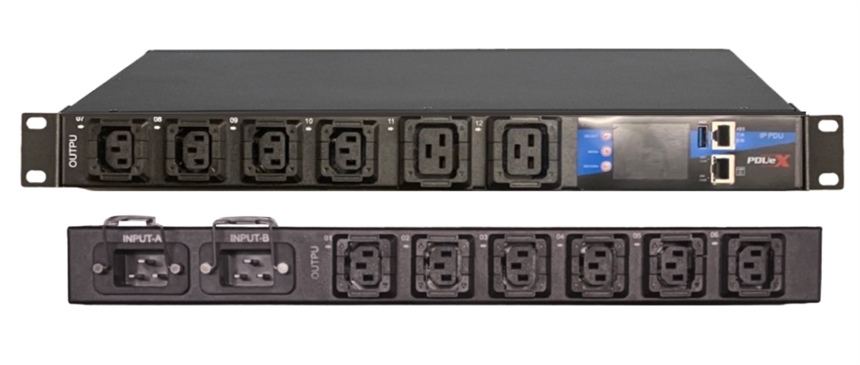

KWXM-ATS16A10x2-H2C20 - PDUeX - KWXM 19" PDU 2 x Inputs C20 16A to 10x C13 + 2x C19 Rack mount Automatic Transfer Switch (8-12 ms Switching ) (KWX ATS). With bar unit remote monitoring to Outlet metered KWX-N2 (KWX M Series)
Description:
KWXM-ATS16A10x2-H2C20
KWXM-ATS16A10X2-H2C20 Rackmount Automatic Transfer Switch is a new generation of intelligent Automatic Transfer Switch (ATS). It combines network power distribution and environmental monitoring technology to deliver consistent power to single-corded equipment.
The KWXM-ATS16A10X2-H2C20 features dual input power cords that supply power to the connected load. If the primary power source becomes unavailable, the unit seamlessly switches to the secondary power source without interrupting critical loads. This high-speed transfer rate ensures the transition is transparent to sensitive equipment.
The KWXM-ATS16A10X2-H2C20 also provides remote monitoring of total current load and voltage. Users can receive SNMP-based or email alerts when power or environmental conditions exceed predefined thresholds. Access rights can be assigned to user groups or individual users.
Features:
• LCD Display
• USB 3.0 Sensor port
• Monitors total kWh and power factor
• Input and output voltage monitoring
• Operates in hot-rack environments up to 55 °C
• SMS, SNMP, and email notifications
• 10 × lockable IEC C13 outlets and 2 × IEC C19 outlets
• Built-in environmental monitoring technology
• Infrared monitoring
• Temperature and humidity alarm
• Water leakage alarm
• Rack door open alarm
• Smoke alarm
• Support for up to 8 plug-and-play sensors
• Blade server ready
• Dry contact connector for audible alarms
• Intelligent outlet type and number recognition
• Available in 1, 4, 8, 10, and 16-port horizontal models, 16A and 32A
• Per-socket current monitoring
• Total current monitoring
• Input voltage monitoring
Specification:
Locking Sockets view example.
Versions may have more or less ports check specification and description
Product series KWXM-N-ATS-2
Product Size W x D x H= 19“ x 248 x 44.45 mm
Mounting length 465 mm
Case colour Black
Output Socket types:
Lockable IEC 320 C13 10A + IEC 320 C19 16A
Two Inputs:
A&B IEC320 C20 16A
Input/output voltage Total load current Power supply A or B line operating state
Function - Automatic switch over power A and power B
Overload alarm When over the 16A threshold both the ATS alarm and the LED display will be activated.
Switching time (From "A" to "B" line): 8 ms ≤ 12 ms
