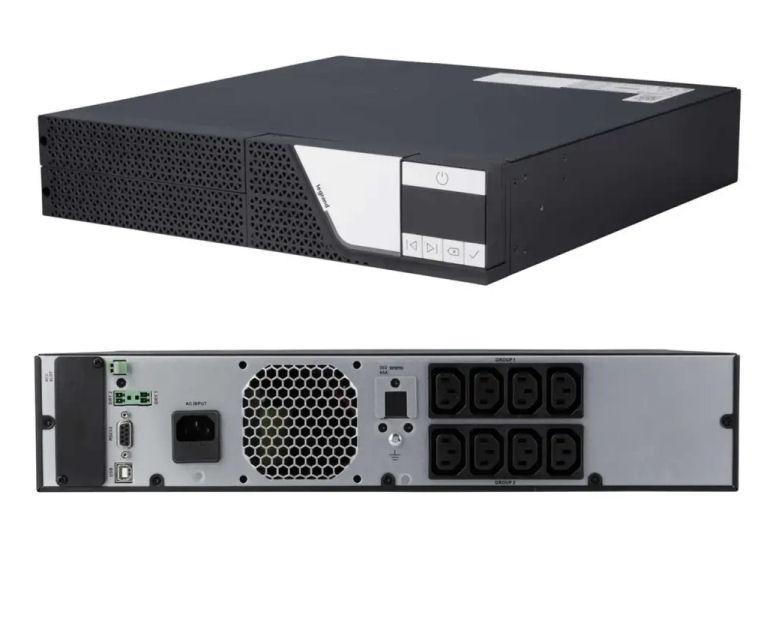

LGK-311262 KEOR SPE RT 2U 1000VA UPS Rack Mounted Single Phase
Description:
Legrand Keor SPE1-1500 2U
The Legrand UPS Keor SPE RT is an uninterruptible power ource with line-interactive echnology with pure sinewave output. The Keor SPE RT is a convertible UPS that can be used in both tower and rack configurations. It delivers a rated power from 750 to 3000 VA, is managed by a microprocessor, is equipped with integrated self- iagnostics and works on cold-start. The most intelligent and efficient network power protection comes with the best aesthetic design. Keor SPE RT is equipped, internally, with valve regulated, hermetically sealed lead accumulator batteries. The batteries can be easily replaced thanks to a specific door located on the front of the UPS. The presence of an electronic stabilizer (AVR) inside the UPS provides the connected loads with effective protection against any interference in the electrical mains
The most intelligent and efficient network power protection comes with the best aesthetic design.
Features:
- Convertible Rack/Tower (19“ rack)
- USB, RS232 and SNMP: all works simultaneously
- Different P.F. options for different needs 0.7 to 0.9
- Size 2U
- Wide input voltage range and frequency
- Convertible display helps to use both for tower and rack applications
- Multicolored status bar LED
Hot swappable battery
- Cold start (DC power on)
- RS232 & USB - SNMP Slot
Overload, short circuit, back-feed, over-temperature protection
- EPO Electronic circuits against overloads and short-circuit, back-feed, emergency power off [EPO] and overtemperature
Specification:
General Features
Nominalpower (VA) 1000
Activepower(W) 800
Technology Line-interactiveVI
Waveform Sinusoidal
Input
Input voltage 230V
Input frequency 40-70Hz(50/60Hzauto-sensing)
Input VoltageRange Nominal:230/Range:160-288@full load
InputConnection 10AIEC 320-C14
Output
Output voltage 230±1%adjustable to200/208/220/230/240
(Batterymode:230V+6%,-10%,200/208V: 90%
derating)
Output frequency (nominal) 50or60Hz+/-0,5%
THDOutputvoltage <3%withlinear load
Outlets 2x(4xIEC320-C13) (1-groupprogrammable)
Batteries
Numberofbatteries 3pcsVRLA(Front-access,hotswappable)
BatteryseriesType/Voltage 12V,7Ah
ChargingTime(0-90%) 6hours
CommunicationandManagement
Displayand Signals Fourbuttonsand four LEDstomonitor thestatus
of theUPSinreal time
RemoteManagement USB(HID),RS232andConnector fornetwork
interface(SNMP): allworks simultaneously
EPO EPO(adjustableasNC/NO)
DryContact (NO) 2pcs:Relay1: Input failureRelay2:Battery low
Protections Overloads,short-circuit,back-feed,overtemperature
Technicalfile:UPS_LGR_0186_GB_AA Update:09/04/2024 09/04/2024
1/1
EnvironmentalConditions
Operating temperature(°C) 0÷40°C
Relative humidity(%) 0÷95%non-condensing
Noise level at1m(dBA) <50
Estimatedcontentof circulareconomy
derived materials*-Product alone-Packaging only-Total recyclability value of the product
10%
47%
15%
Recyclability rate calculated using the
method described in technical report
IEC/TR62635**
77%
Certifications
Standards EN62040-1, EN62040-2, EN62040-3
Mechanical Features
MeasurementsW xHxL(mm) 440x88x4402U
NetWeightw/obatteries(kg) 16,9
